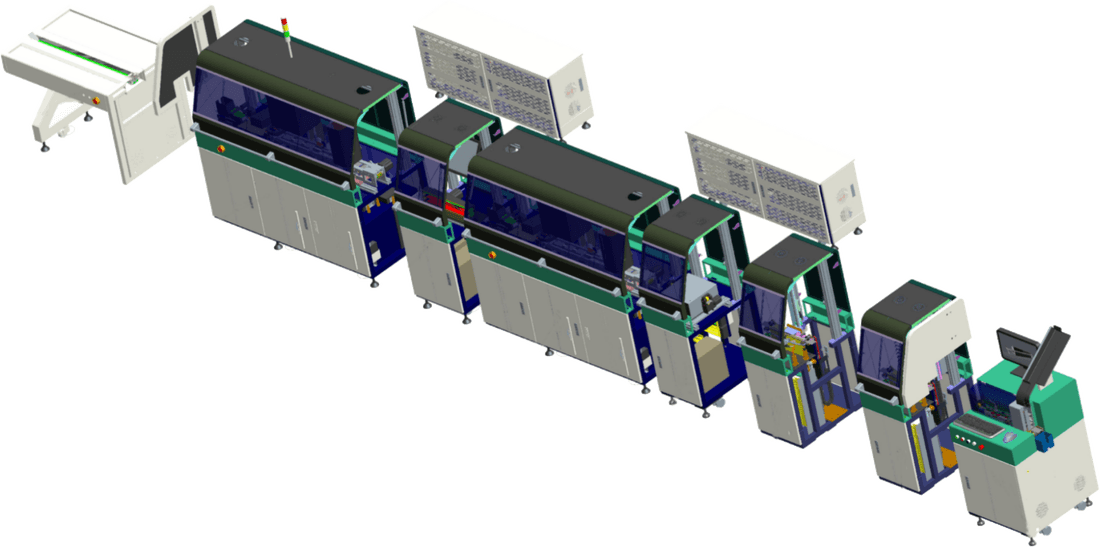

DOD Card Personalization System
High-speed drop-on-demand personalization for payment, loyalty and ID cards.
The IDM6820 is a drop-on-demand card personalization line for card bureaus and issuers. Cards are encoded, printed and verified in a single pass at up to 6000 an hour, and because each module is controlled separately the same line handles payment cards, loyalty cards and ID cards.
6000 CPH
Production speed
8 + 8
Contact & contactless heads
3 tracks
Magnetic encoding
1000 cards
Input magazine
Built for card bureau throughput
Drop-on-Demand UV Inkjet
Single-pass printing with plasma surface treatment and UV-LED curing, covering the card edge to edge.
High-Speed Chip Encoding
A vertical-lift design with eight contact stations, expandable to sixteen, alongside eight contactless stations.
Magnetic Stripe Encoding
All three ISO 7811 tracks in HiCo and LoCo, including transparent and embossed cards.
OCR on Every Print Module
Each printing module carries its own OCR, with two QC modules checking barcodes and digits before collection.
Wide Material Compatibility
PC, PVC, ABS, PET, PETG and composite cards from 0.6 to 1.0 mm, including SIM carriers.
Module-by-Module Control
Every module can be switched on or off in software, so one line runs several card products.
One pass, eight stations
Cards run the length of the line once: encoded, printed on both sides, checked after each print, and separated if anything fails.
- 1Card input1000-card magazine
- 2Chip encodingContact and contactless
- 3Magnetic encodingThree ISO 7811 tracks
- 4Front printingWith OCR check
- 5FlipperCard turned over
- 6Rear printingWith OCR check
- 7RejectionFailed cards diverted
- 8CollectionFinished cards out
Technical specification
Production
- Production rate
- Up to 6000 cards per hour
- Card materials
- PC, PVC, ABS, PET, PETG and other composite materials
- Card size
- ISO/IEC 7810 ID-1, 30 mil (±10%)
- Thickness 0.6–1.0 mm
- Card types
- Mini-SIM, nano-SIM and micro-SIM embedded in ISO 7810 ID-1 sheets
Modules
- Input module
- Capacity: 1000 cards
- Arc-shaped magazine reduces pressure on the card stack
- Designed to limit noise and surface scratching
- Chip encoding
- Contact: 8 heads, expandable to 16 (configured before delivery)
- Contactless: 8 heads
- Standards: ISO/IEC 7816 and ISO 14443 type A/B
- Magnetic encoding
- 3 tracks to ISO 7811, HiCo and LoCo
- Reads transparent and embossed cards
- Printing
- Single-pass UV inkjet, 2 UV colors (black and white)
- Up to 2 printing heads per module
- Plasma surface treatment for ink adhesion, UV-LED curing
- Edge-to-edge printing, tolerance 0.5 mm
- Graphics, text, numbers, barcodes, 2D and Datamatrix codes, logos
- Quality check
- Two OCR modules
- Barcode and digit verification
System
- Dimensions
- 7500 × 800 × 1600 mm (L × W × H)
- Power supply
- AC 220–240 V, 50/60 Hz
- 5 kW
- Compressed air
- 6 bar
- Noise
- 85 dB
- Operating environment
- Temperature 0–35 °C
- Humidity 5–95% RH, no condensation
