BioCase
A complete biometric registration station that closes into a rugged flight case and travels to the applicant.

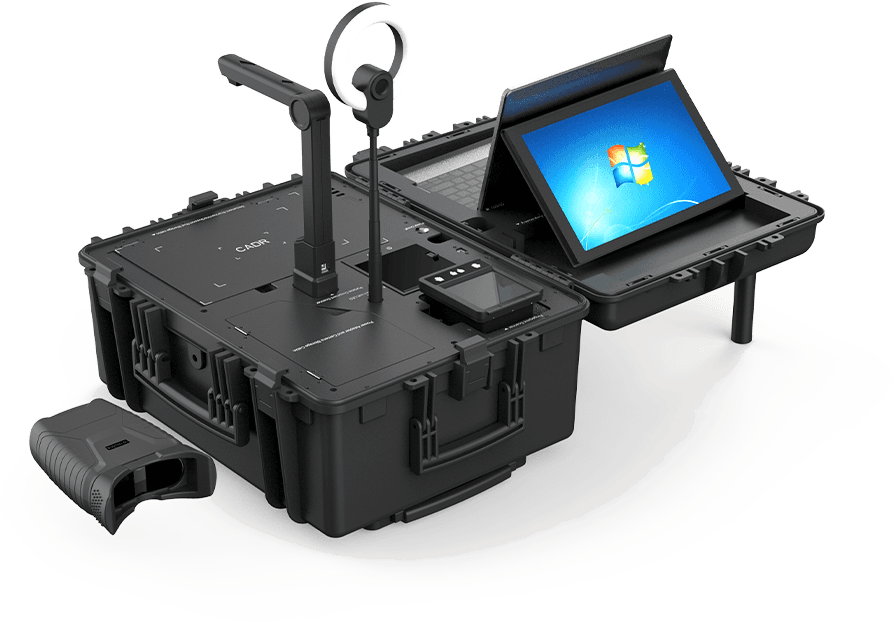

The BioCase is a portable, MOSIP-compliant and certified enrolment kit. It captures iris, fingerprint and face, scans documents and prints receipts — everything a registration desk needs, packed into an IP67-rated case that runs for ten hours or more on a battery you can swap in the field. It is built for registration that happens away from an office: a village hall, a camp, a bank branch, a border post. Two configurations are offered — fully integrated, where the station works from inside the open case, and modular, where the capture modules and tablet lift out for immediate deployment.
10 h+
Battery life
IP67
Sealed case
617 × 469 × 292 mm
Case size
< 22 kg
Gross weight
Everything a registration desk needs, in one case
Iris, fingerprint and face
All three modalities are captured from the same station, each device compliant with MOSIP MDS 0.9.5 and scoring its own quality as it captures — NFIQ 2.0 on the fingerprints, quality overlaid on the iris and face preview.
Documents in a second
A 10-megapixel A4 scanner with its own LED array digitises the breeder documents the applicant brings — one second a page, in colour, greyscale or black and white.
Applicant-facing screen
A 12.3-inch screen with its own speaker faces the applicant, so they can follow the capture, hear the prompts and confirm what has been recorded before it is submitted.
Receipts on the spot
A thermal roll printer issues the receipt at the desk, closing the visit without a return trip — no cartridges to carry and 60 metres of paper on a roll.
Where the registration happened
A GPS receiver rides in the case, so a mobile registration carries the place it was taken as well as the time.
Ten hours off-grid
The battery is built into the case, shows its charge on LED indicators, keeps working while it charges, and swaps for a fresh one when a day runs long.

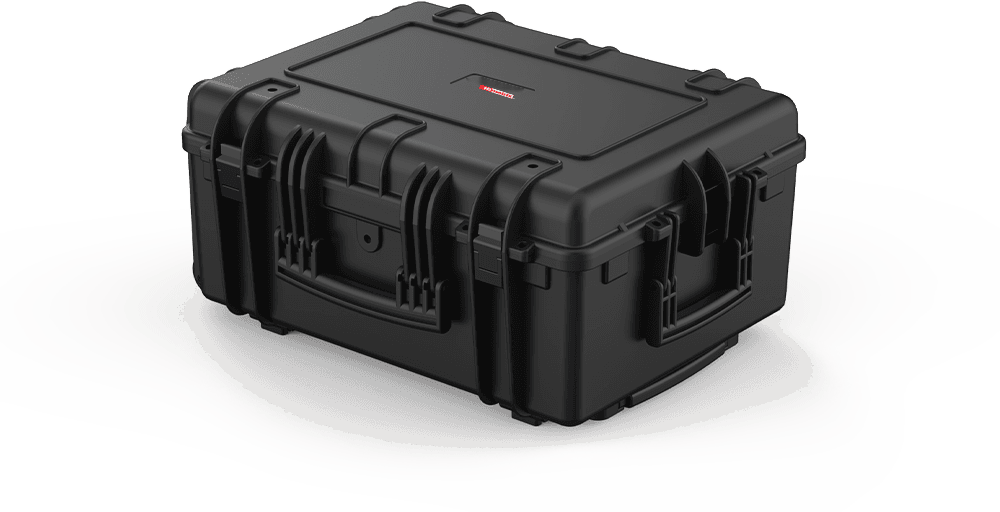

Built for the field
IP67 rated with a non-slip exterior, shock-padded and dust-tight inside, on wheels with several handles, and ventilated so it can be worked out of with the lid open.
Technical specification
Carrying case
- Type
- IP67 certified, waterproof and crash-protective
- Rugged, non-slip exterior
- Wheeled, with several handles
- Interior
- Dust-tight, with shock-resistant padding
- All components reachable for maintenance
- Lock
- Buckles and lock holes
- Operational setup released by key or password
- Dimensions
- 617 × 469 × 292 mm
- Weight
- Under 22 kg gross, with all accessories
- Ventilation
- Aerated, with heat regulation for continuous in-case operation
- Setup
- Open the case and work — the laptop is fixed in place at a working angle
- USB hub
- 3 × USB 3.0
- 2 × USB 2.0
Power
- Battery
- 10 hours or more
- 115 W supply
- Embedded in the case and swappable
- Charge status on LED indicators
- Operates while charging
- Charging point
- Mounted outside the case
- Protected inlet, shielded from water and dust
- Power cord
- 4 m extension with a 2-pin type E outlet for 220/230 V
- Stows inside the case for transport
- Plugs into universal standard sources
- Surge protection
- Attachable surge protector at the 2-pin outlet
Laptop
- Processor
- Intel Core i5-13420H
- 8 cores / 12 threads
- 2.1 GHz base, 4.6 GHz turbo
- 12 MB cache
- Memory
- 16 GB DDR4
- One soldered, one DIMM slot
- Storage
- 512 GB M.2 NVMe SSD
- Screen
- 14″ full HD, 1920 × 1080
- Graphics
- Integrated UHD
- Operating system
- Windows 11 Home, English
- Connectivity
- Gigabit Ethernet 10/100/1000
- Wi-Fi 802.11ax and Bluetooth
- Ports
- 1 × HDMI
- 1 × RJ-45
- 2 × USB 3.0
- 1 × USB Type-C
- Battery
- 45 Wh internal, 4 hours
- DC adapter
- Size and weight
- 324 × 215 × 19.9 mm
- 1.43 kg
- Keyboard and mouse
- USB keyboard, English QWERTY
- USB mouse
Secondary screen
- Screen
- 12.3″, 1920 × 1280
- Display area 259.2 × 172.8 mm
- Luminance
- 300 cd/m² or more
- Interfaces
- 2 × USB Type-C
- 1 × mini HDMI
- Speaker
- Built in, with adjustable volume
- Size
- 270 × 189 × 9 mm
- Stand
- Tablet folding stand
Fingerprint scanner
- Image standard
- ISO 19794-4:2011 Annex B1
- ANSI/NIST-ITL 1-2007 / 2011
- ISO/IEC FCD 19794-4
- Resolution
- 500 native DPI minimum
- 8-bit, 256 grey levels
- Capture
- 4 + 4 + 2 slaps
- Rolled fingerprints
- Single fingerprints
- Active platen
- 81.28 × 76.30 mm for four fingers
- Capture mode
- Live auto capture with built-in NFIQ quality check
- Slap segmentation and sequence detection
- Automatic left / right hand and two-thumb detection
- Capture quality feedback lights
- Quality score
- NFIQ v2.0
- Preview
- Over 3 fps M-JPEG with the NFIQ 2.0 score overlaid
- Format
- JPEG 2000, lossless
- ESD
- 8 kV, IEC 61000-4-2
- EMC
- FCC Class A
- CE emissions
- Environment
- −10 °C to +55 °C
- 10–95% humidity, non-condensing
- IP65
- MOSIP
- MDS 0.9.5
- API handles discovery, streaming and capture
- Connection
- USB 2.0, bus powered
Iris scanner
- Image standard
- ISO 19794-6:2011 Annex B
- Aspect ratio 1:1
- Iris diameter
- 220 pixels minimum
- Resolution
- 11 pixels/mm or more
- Spatial resolution 60% or better at 4 lp/mm
- 8-bit, 256 grey levels
- Capture distance
- 12 cm or less
- Illumination
- Infrared at 850 nm
- Capture
- Both eyes at once, automatic
- Left / right eye detection
- Progressive scan
- Image type
- VGA (K2)
- Cropped (K3)
- Format
- JPEG 2000, lossless
- Preview
- 15 fps M-JPEG with the quality score overlaid
- Sensor SNR
- Over 36 dB
- EMC
- FCC Class A
- Environment
- 0 to 50 °C
- 10–90% humidity, non-condensing
- IP64
- MOSIP
- MDS 0.9.5, SBI 1.0 or L0
- Connection
- USB 2.0, bus powered
Face camera with LED
- Image standard
- ISO/IEC 19794-5:2011
- Camera
- 1080p with a 90° field of view
- Sensor 10 megapixels or more
- Digital zoom, HD autofocus, automatic light correction
- Portrait
- ICAO full frontal, ±5° rotation
- 35 × 45 mm, 24-bit RGB on a white background
- Exception image
- 60 × 40 mm full frontal with two palms beside the face, waist up
- Skin tones
- Captures and renders all skin tones accurately
- Capture mode
- Plain live capture, or automatic with autofocus, auto exposure and auto white balance
- Smile, eyes open or closed, mask and other facial detection
- Automatic cropping to the configured dimensions
- Capture quality feedback indicator
- LED
- Sufficient for facial photography in varying light
- Set to avoid reflections, shadows and a flat face
- Intensity and warmth adjustable by hand or from software
- Switches itself on and off around the capture
- Audio
- Dual omni-directional microphones, clear to one metre
- Format
- JPEG 2000, lossless
- Mounting
- Vertically adjustable stand, mountable with the kit
- Environment
- 0 to 50 °C
- IP65
- FCC Class A
- MOSIP
- MDS 0.9.5, SBI 1.0 or L0
- Connection
- USB Type-A, one cable for camera and lighting
Backdrop screen
- Size
- 80 × 120 cm or larger
- Fabric
- Wrinkle-free, durable and washable
- Adjustable stand
- Transport
- Folds into its own bag outside the case, with backpack handles
- Durable holder for storage
- Seating
- An office chair with a short back, so the headrest stays out of the photo
Document scanner
- Resolution
- 3672 × 2754, 10 megapixels
- Sensor
- 1/2.5″ CMOS
- 24-bit colour
- Focus
- Autofocus
- Built-in LED array
- Scan size
- A4
- Speed
- One second a page
- Colour modes
- Colour, patterns, stamps, greyscale, black and white
- Output
- JPG, GIF, BMP, TIFF, PDF, Word, Excel, TXT
- Operating systems
- Windows 7 to 11, 32 and 64-bit
- macOS 10.13 and above
- Linux
- Connection
- USB 2.0, USB-IF certified
Monochrome printer
- Type
- Thermal, monochrome
- Speed
- 100 mm/s maximum, ISO/IEC 24734 for thermal paper
- Resolution
- 203 dpi
- Paper
- Roll, 79.5 ± 0.5 mm wide
- Up to 80 mm diameter, 60 m of paper
- Reliability
- 100 km
- Supplied with
- Charger
- 20 m paper roll
- Pouch
- Operating systems
- The kit laptop, Windows 7 to 11, Android and iOS
- Connection
- USB 2.0, USB-IF certified
GPS
- Receiver
- WAAS enabled
- Acquisition sensitivity
- −140 to −150 dBm
- Acquisition times
- Reacquisition under 10 s
- Hot start under 15 s
- Warm start under 45 s
- Cold start under 60 s
- Environment
- IP67, dust proof and waterproof
- Operating system
- Windows 10 and above
- Connection
- USB 2.0 or higher, Type-A
Two configurations
The same capture capability, packaged for two different ways of working in the field.
Fully-integrated model
Capture modules, laptop, secondary screen and accessories are consolidated into a single unit and operated from inside the open case.
Modular model
Capture modules, a tablet and the accessories lift out of the case, so a team can deploy them immediately wherever the registration is taking place.
