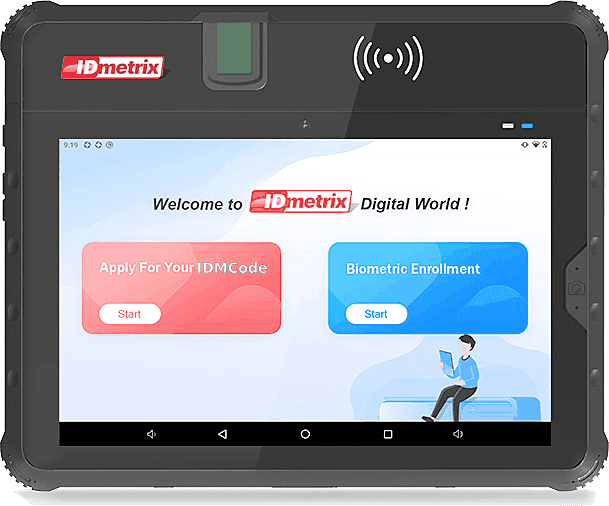

BioTab 10
The next generation of mobile biometric technology, built for enrolment and authentication alike.
BioTab 10 is the AI-powered member of the tablet family. It captures biometrics multimodally and reads identity documents in the field, and the AI in the capture path is what raises the quality of what is recorded while shortening the time it takes to record it — a difference that matters most when the operator is standing at a border post or working a registration queue rather than sitting at a desk.
IP65
Sealing
10 h
Battery life
10″
Screen
AI-powered
Capture
Multimodal capture, wherever the applicant is
AI-powered capture
An AI accelerator sits on the tablet’s own processor, so the quality checks run where the capture happens — raising what is recorded and cutting the time each capture takes, which is what makes a queue move.
Fingerprint sensor
A fingerprint sensor set into the bezel above the screen, within reach of an applicant standing opposite the operator.
Contactless and NFC
A contactless reader on the front face reads the chip in an eID card or ePassport held against it.
Document reading
The data page of a passport or ID card is read on the screen and returned as a parsed record — portrait, MRZ lines and the biographical fields, ready to check.
A full shift on one charge
A 10 000 mAh battery runs ten hours — a registration day or a border shift — and fast charging puts it back to 80% in two.
Iris, both eyes at once
A binocular iris scanner reads at arm’s length — around 30 cm to enrol, a little wider to compare — and stores a template under a kilobyte, which is what makes iris workable over a mobile connection.
Connected wherever it goes
Two nano-SIMs and an eSIM across GSM, WCDMA, TD-SCDMA and LTE, with dual-band Wi-Fi, Bluetooth and GPS — so a team is not choosing between coverage and a spare device.
Four secure card slots
Four PSAM slots to ISO 7816 hold the keys a programme needs on the device itself, alongside contactless and contact card reading.
Built to be carried
A ruggedised housing with protective corners and sealed port covers, made to be handled outdoors rather than kept on a desk.
Read the document, check the holder
The passport data page is captured on the screen and comes back as a parsed record: the portrait, both MRZ lines and every biographical field laid out for the officer to check. With the contactless reader on the same face, the document and the person in front of it are verified in one exchange.
Technical specification
Tablet
- Operating system
- Android 12
- Processor
- 2.0 GHz 64-bit octa core
- 4 × Cortex-A73 and 4 × Cortex-A53
- With AI accelerator
- Graphics
- Arm Mali-G72 MP3, 700–800 MHz
- Memory
- 4 GB RAM
- 8 GB storage
- Micro SD to 256 GB
- Display
- 10.1 inch, 1920 × 1200 FHD
- 300 cd/m²
- Multi-touch
- Battery
- 10 000 mAh
- Fast charge to 80% in two hours
- Size and weight
- 275 × 225 × 22.5 mm
- About 1.2 kg
- Sealing
- IP65
- Interfaces
- 2 × USB Type-A
- 1 × USB Type-C
- Sensors
- Proximity
- Light
- Acceleration
- Audio
- Speakers and microphone
- FM over a Type-C headset
Connectivity
- SIM
- 2 × nano SIM, dual standby
- eSIM supported
- Bands
- GSM
- CDMA BC0/BC1, EVDO BC0/BC1
- WCDMA B1/2/5/8
- TD-SCDMA B34/39
- FDD/TDD-LTE B1/2/3/5/7/8/12/17/20/28/34/38/39/40/41
- Wi-Fi
- Dual band 2.4 and 5 GHz
- 802.11 a/b/g/n/ac
- Bluetooth
- 4.2
- Location
- GPS and A-GPS
- PSAM
- 4 slots
- ISO 7816
Cameras
- Front
- 5 megapixels
- Autofocus
- Rear
- 13 megapixels
- Automatic exposure, focus and white balance
- With flash
Biometric capture
- Single fingerprint scanner
- Capture area 13 × 18.3 mm
- 500 dpi, 256 grey levels
- Capture under one second
- FBI-PIV, MINEX III, ISO 19794-2 and NIST-378
- Certified FBI-PIV, RoHS, STQC, WEEE, WHQL
- 4-4-2 scanner (optional)
- Platen 83.3 × 78.2 mm, capture area 81.28 × 76.2 mm
- 500 dpi, 256 grey levels
- Four-finger flat 1600 × 1500, two-finger 900 × 900, single and rolled 800 × 750
- FBI IQS Appendix F
- Certified FBI, KC, CE, FCC, UL, IEC 62471, WEEE, RoHS, REACH, WHQL
- Connects by USB cable
- Iris scanner
- Binocular capture
- 27–31 cm to enrol, 25–35 cm to compare
- Template under 1 KB
- ISO 19794-6
Card reading
- Contactless
- ISO 14443 Type A and B
- FeliCa
- Range 0–2 cm
- Contact
- ISO/IEC 7816 1/2/3/4 (T=0 and T=1)
Environment
- Operating temperature
- −10 °C to 50 °C
- Storage temperature
- −25 °C to 70 °C
- Operating humidity
- 5–95% RH, non-condensing
- Storage humidity
- 5–90% RH, non-condensing
