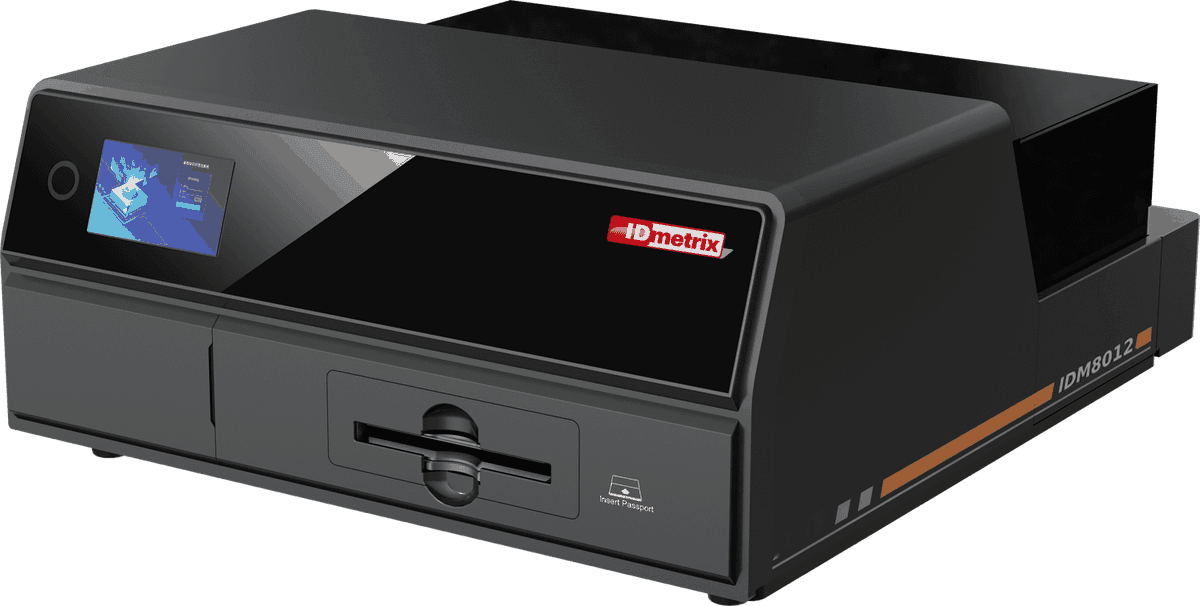

INKJET DeskBook
Decentralized ink-jet personalization for passport issuance.
INKJET DeskBook personalizes passports with paper-based data pages on a desk rather than in a bureau. Ink-jet printing puts a true-colour portrait, the holder’s data and the document’s security features onto the page, a built-in OCR module confirms the position and the data before it prints, and an optional chip encoder completes an ePassport in the same pass. It is built for the cases a central bureau handles badly — an emergency replacement, a consular post, a border office — where the applicant should leave with the document in hand.
100 UPH
Throughput
600 dpi
1200 supported
1 000
Booklets a cartridge set
ICAO 9303
Compliant issuance
A passport bureau that fits on a desk
State-of-the-art ink-jet printing
High-quality personalized paper-based security documents with a true-colour photograph — the portrait is printed, not affixed, so it belongs to the page.
Instant issuance
Emergency and decentralized issuance without the postal wait: the document is personalized where the application is taken and handed over in the same visit.
Every booklet checked before it is handed over
An accurate positioning system places the print, and a camera captures the finished page so the application can verify the data itself — the officer validates what the machine has already checked, rather than catching mistakes by eye.
Printing flexibility
Pages are printed one at a time or in facing pairs — 2 and 3 together, say — so data page, observation page and visa endorsements come off one machine.
Optional chip encoding
An encoding module writes the contactless chip in line with ICAO standards, so the machine issues standard passports and ePassports alike.
Fluorescent security inks
Beyond the four process colours, red, green, blue and white fluorescent inks are available — a security feature printed into the page rather than added to it.
Two speeds, one engine
A text mode and a photo mode: the biographical print runs fast, the portrait runs at photographic quality, and the booklet is not held up waiting for the slower of the two.
Paired with the DeskBook Laminator
Printing is half the job: the laminator seals the personalized page under full-page or patch security film, on the same desk, in the same visit.
See the DeskBook LaminatorLow operational cost
Cost-effective consumables and low maintenance. For a site issuing tens of documents a day, the running cost is what decides whether local issuing is viable.

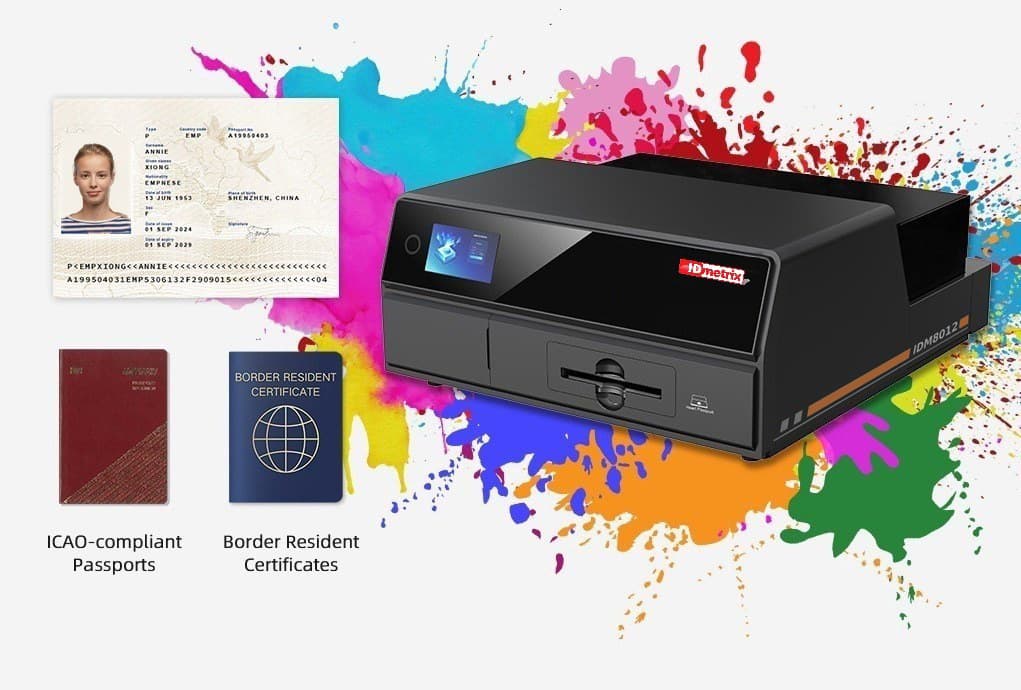

A true-colour data page, printed on paper
Passports, border resident certificates and other paper-based security documents are personalized with photographic colour and the fine detail their security design depends on.

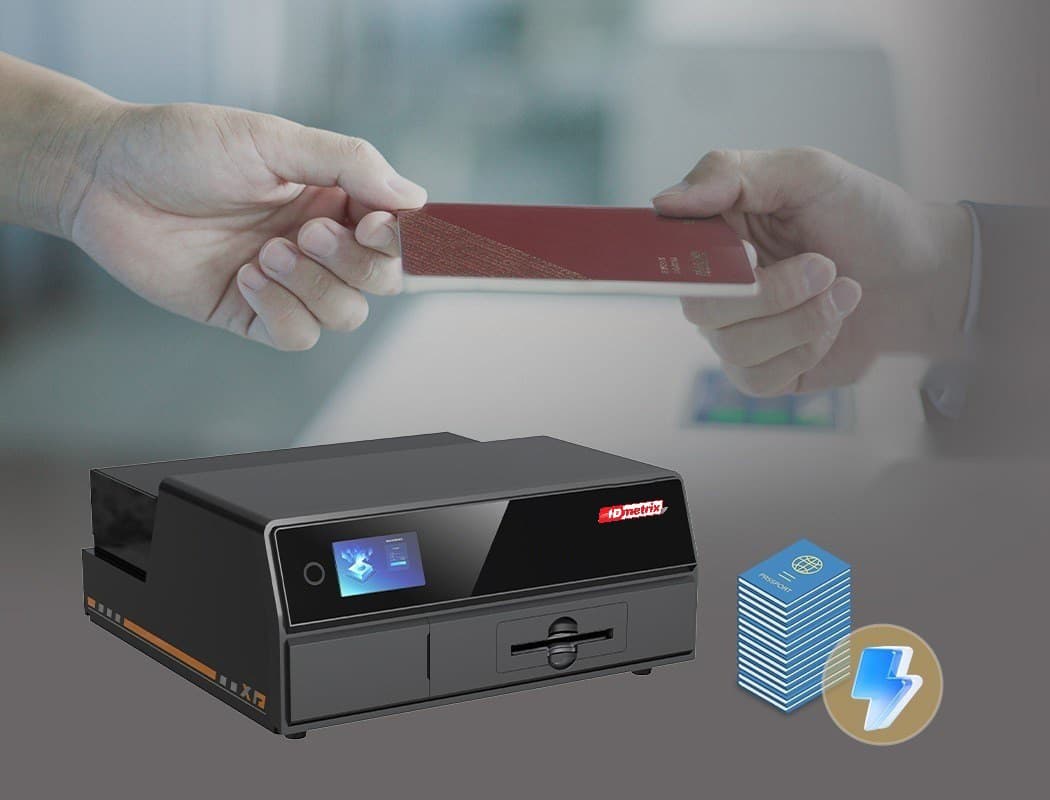

Issued while the applicant waits
Emergency replacements, consular posts and border offices all need a document today rather than next week. The booklet is personalized at the counter and handed straight back.

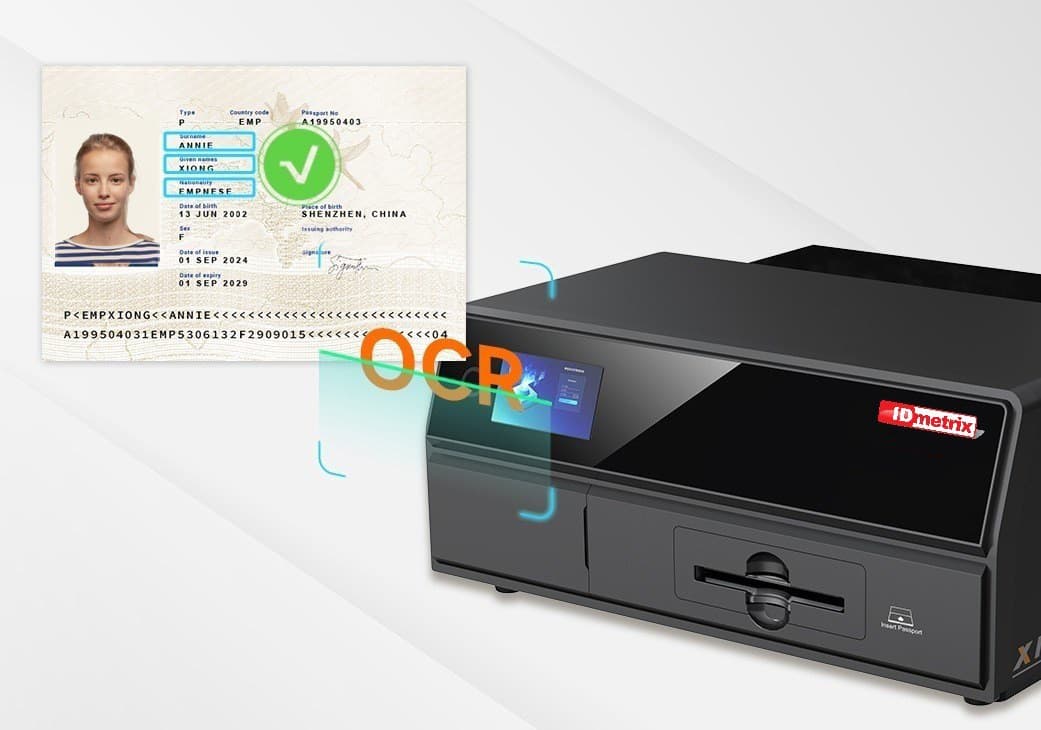

The page is read before it is printed
The built-in OCR module checks the print position and the data against the booklet in front of it. A misaligned data page in a decentralized office means a spoiled passport, so the machine verifies first.

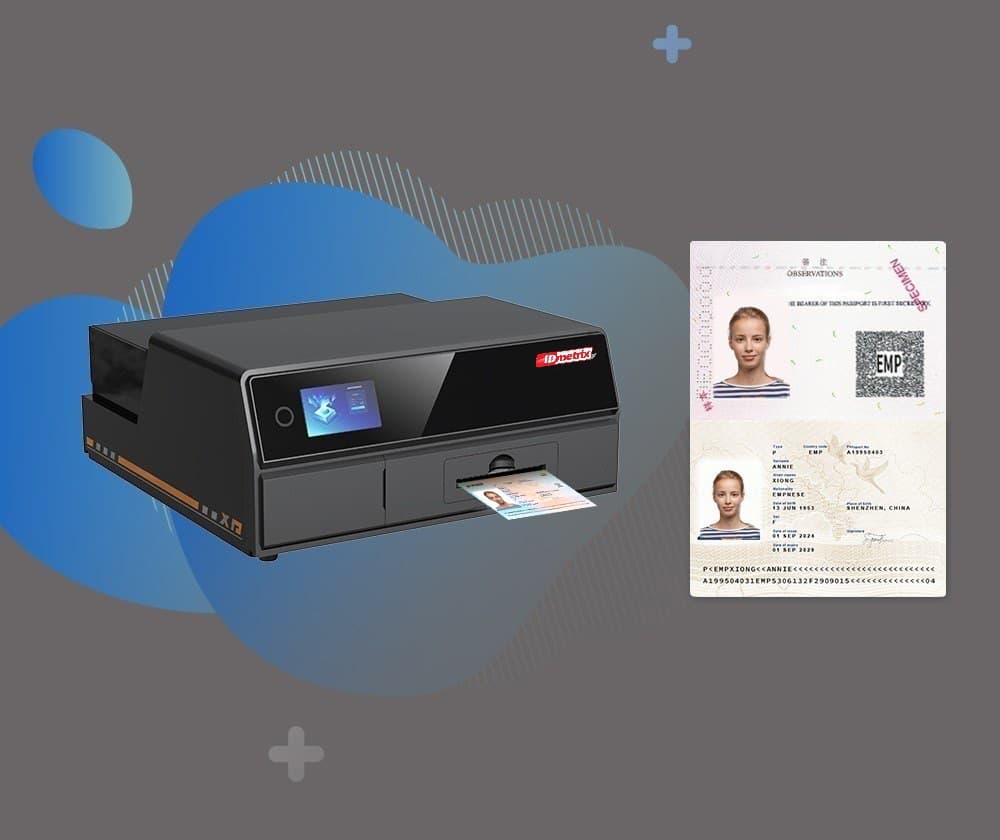

Data page and observation page together
Both pages are printed in one operation. Observations, endorsements and visa notes are handled by the same machine that issues the document.

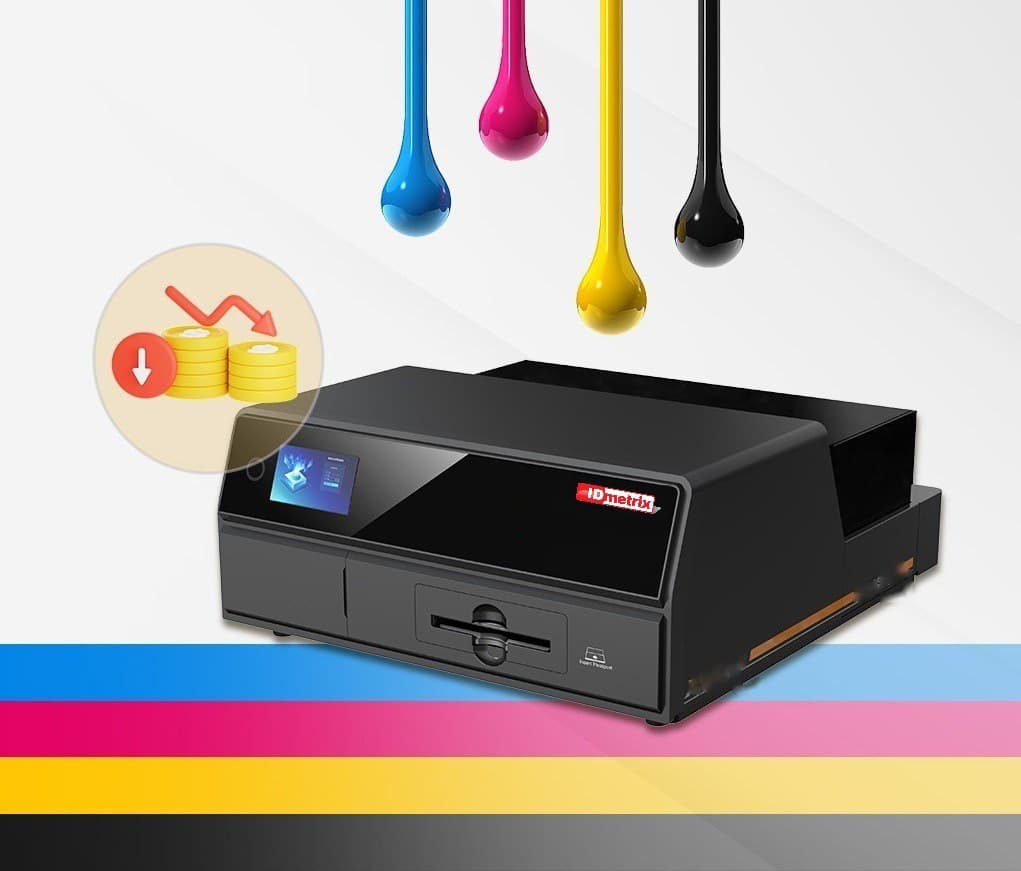

Consumables a small site can carry
Cost-effective ink and low maintenance keep the cost per document down, which is what makes it reasonable to put an issuing machine in every office rather than one bureau.

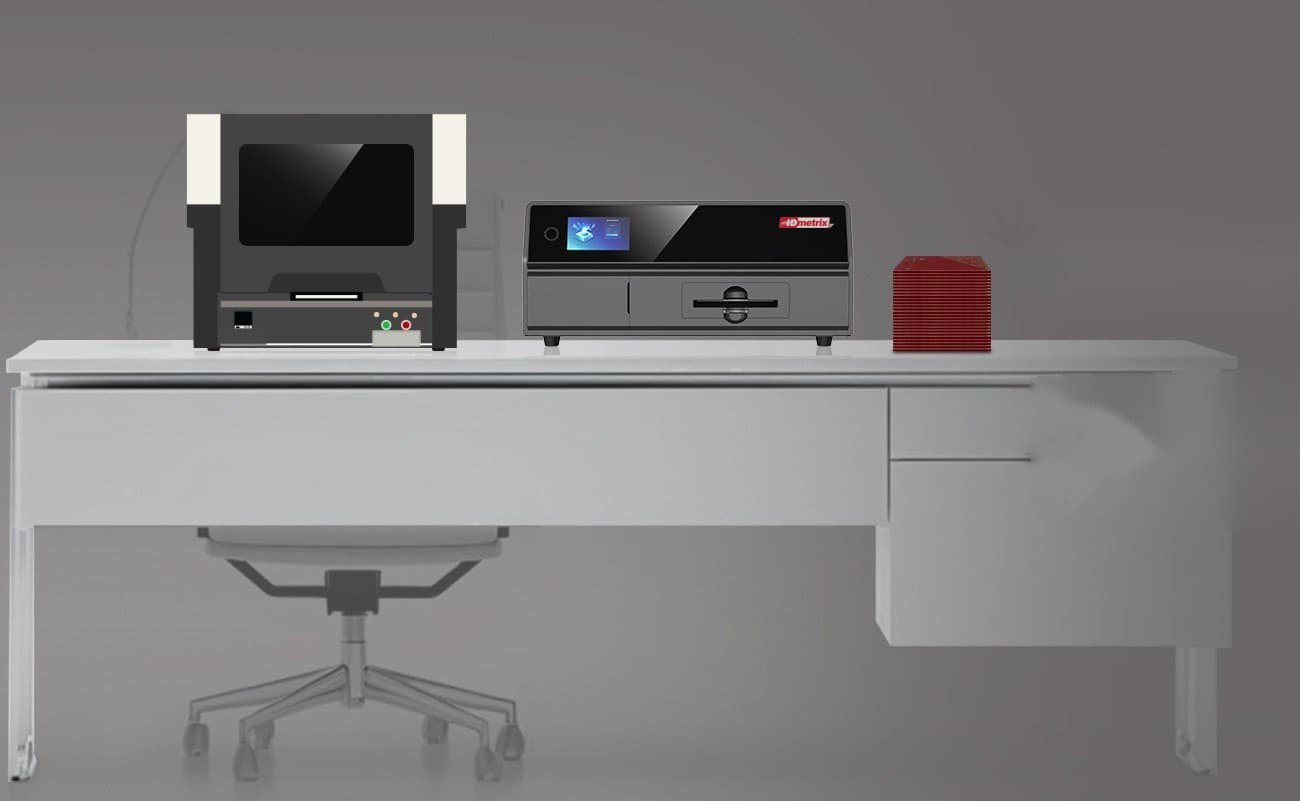

Compact and rugged, deployed anywhere
It sits on an ordinary desk alongside the enrolment station and the blank stock, which is what decentralized issuance actually looks like in a district office.
Technical specification
Printing
- Throughput
- Up to 100 booklets an hour
- Resolution
- 600 dpi
- 1200 dpi supported
- Inks
- Aqueous, four colour: yellow, magenta, cyan, black
- Fluorescent red, green, blue and white optional
- Modes
- Text and photo
- Print area
- 125 × 176 mm
- Pages
- Printed individually or in facing pairs
- Standard
- ICAO 9303 compatible
Consumables and booklet
- Cartridge
- 40 ml
- Yield
- Around 1 000 booklets on a set of cartridges
- Ink shelf life
- 36 months from manufacture
- Booklet thickness
- 6 mm or less
- Other formats by customization
Chip and verification
- RFID reader / encoder (optional)
- ICAO 9303 compliant (MRTD)
- ISO 14443 parts 1 to 4, Type A and B
- Vision camera (optional)
- 2 megapixel colour CMOS, fixed focus, USB 2.0
- Offset registration
- Full-page data capture and verification
Software and connection
- Integration
- SDK with API and DLL covering the printer, RFID, camera and illumination
- User interface
- Graphical, for daily operation and printer status
- Connection
- USB 2.0 / 3.0
- Operating system
- Windows 11
Machine and environment
- Dimensions
- 550 × 450 × 240 mm or less (L × W × H)
- Weight
- About 25 kg
- Power
- 110 V or 220 V AC ±5%
- 50 or 60 Hz ±2 Hz
- Noise
- Under 65 dB
- Operating environment
- 15 to 32 °C
- 40–60% RH
- Storage
- −20 to 60 °C
- 10–85% RH
- Quality standards
- CCC, CE
- Warranty
- 1 year
