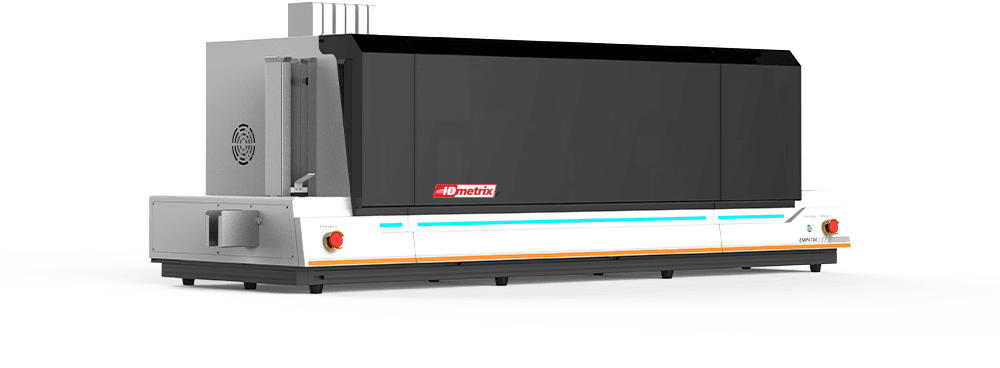

MLP DeskCard
Decentralized MLP personalization solution for ID card issuance.
The MLP DeskCard is a desktop card personalization machine built on the Multi-Layer Personalization security process. It suits any office or card production environment, reaching the same quality as the centralized MLP ProCard, which makes it a fit for small and medium-volume programs and for issuing offices that personalize locally.
150 UPH
Production speed
600 dpi
Laser engraving
1200 dpi
UV inkjet printing
PC / PVC
Card materials
Centralized card quality, issued locally
Multi-Layer Personalization
The MLP security process personalizes every layer of the polycarbonate card, so security and color meet in one document.
What's MLP color printing?True-Color UV Printing
5-color CMYK plus varnish inkjet prints color portraits at up to 1200 dpi, with security elements in the varnish.
Front and Back Engraving
256 grey-level laser engraving with MLI and CLI, on both sides of the card.
Contact and Contactless Encoding
Chip encoding for contact and contactless cards to ISO 7816 and ISO 14443 type A/B.
Automatic Quality Control
A QC camera verifies the personalized elements and diverts anything that fails into the reject bin.
PC and PVC Cards
Handles ISO/IEC 7810 ID-1 cards from 0.76 to 0.84 mm, with double-card and empty detection.
One pass, seven modules
A blank card is fed in at one end and leaves personalized, verified and stacked at the other. Engraving and printing are both positioned to ±0.1 mm.
- 1FeedingBlank cards in, cleaned
- 2OCR & flip-overCard number read
- 3Chip encodingContact or contactless
- 4Laser engravingFront and back
- 5UV printingColor and varnish
- 6QCAutomatic verification
- 7CollectionFinished cards out

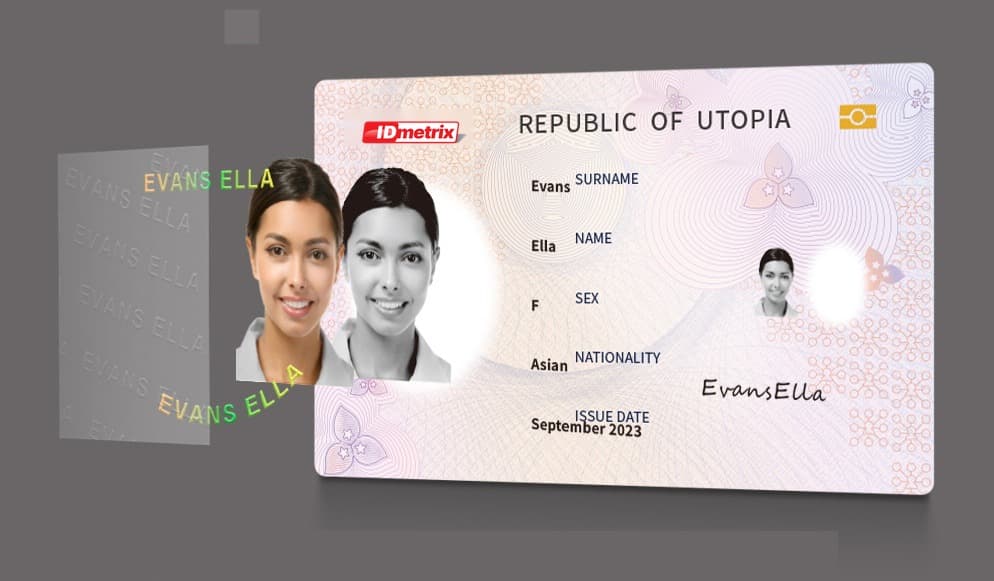

Every layer of the card is personalized
Colour portrait, guilloche artwork and card data are printed in 5-colour UV inkjet, while the laser engraves the portrait, MLI/CLI and micro text into the polycarbonate itself. Because each layer carries its own personalized content, the card cannot be reproduced by copying a single surface.
Technical specification
Modules
- Input module
- Capacity: 300 cards
- Card size ISO/IEC 7810 ID-1, thickness 0.76–0.84 mm
- Empty detection and double card detection
- Card cleaning component included
- OCR & flip-over module
- Card flip-over
- 1 × register OCR for the card number
- Chip encoding module
- Smartware reader / PCSC reader support
- Contact and contactless card encoding
- Standards: ISO 7816 / ISO 14443 type A/B
- Laser & OCR module
- Fibre laser, 20 W average power, air-cooled
- Wavelength 1064 nm, adjustable 20–100 kHz, M² < 1.5
- Marking speed up to 4000 mm/s, 256 grey-level engraving
- MLI and CLI engraving, front and back side
- 1 × register OCR, positioning accuracy ±0.1 mm
- UV printing module
- 5-color (CMYK + varnish) inkjet, color portraits
- 600 dpi standard, up to 1200 dpi
- Varnish carries security personalization elements
- Positioning accuracy ±0.1 mm
- QC module
- Card flip-over
- 1 × OCR for QC
- Automatic verification of the personalized elements
- Output module
- Capacity: 300 cards
- Full detection
- Reject bin
- Capacity: 50 cards
- Full detection
System
- Connectivity
- LAN
- Dimensions
- 1811 × 700 × 636 mm (L × W × H)
- Power supply
- 100–240 V AC ±10%
- 50–60 Hz ±2 Hz
- Less than 1 kW
- Operating environment
- Temperature 20–30 °C (recommended)
- Humidity 30–70% RH, no condensation
- Storage environment
- Temperature 5–40 °C
- Humidity 10–80% RH, no condensation
- Warranty
- 1 year
Ink
- Ink palette
- Cyan, magenta, yellow, black, varnish
- Cartridge fill volume
- 200 ml each color
- Expiration date
- 10 months
